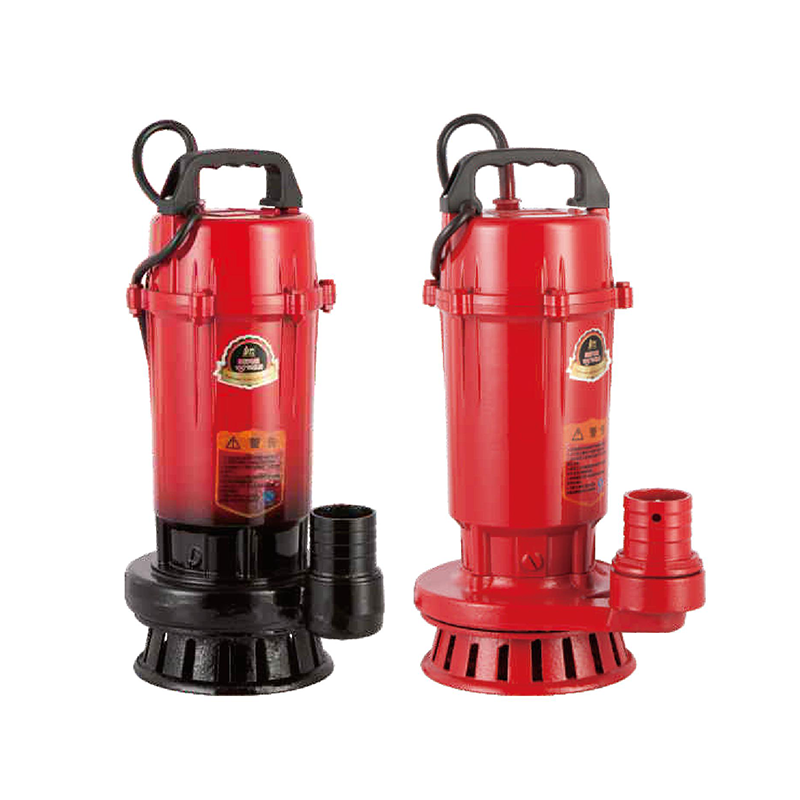

2017QDX Submerible Pump
Motor:
Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection Ip44
Cpmtomicous service S1
Thermal protector for single phase
Single-phase 220V/5OHz,6OHz if request
Three-phase 380V/5OHz,6OHz if request

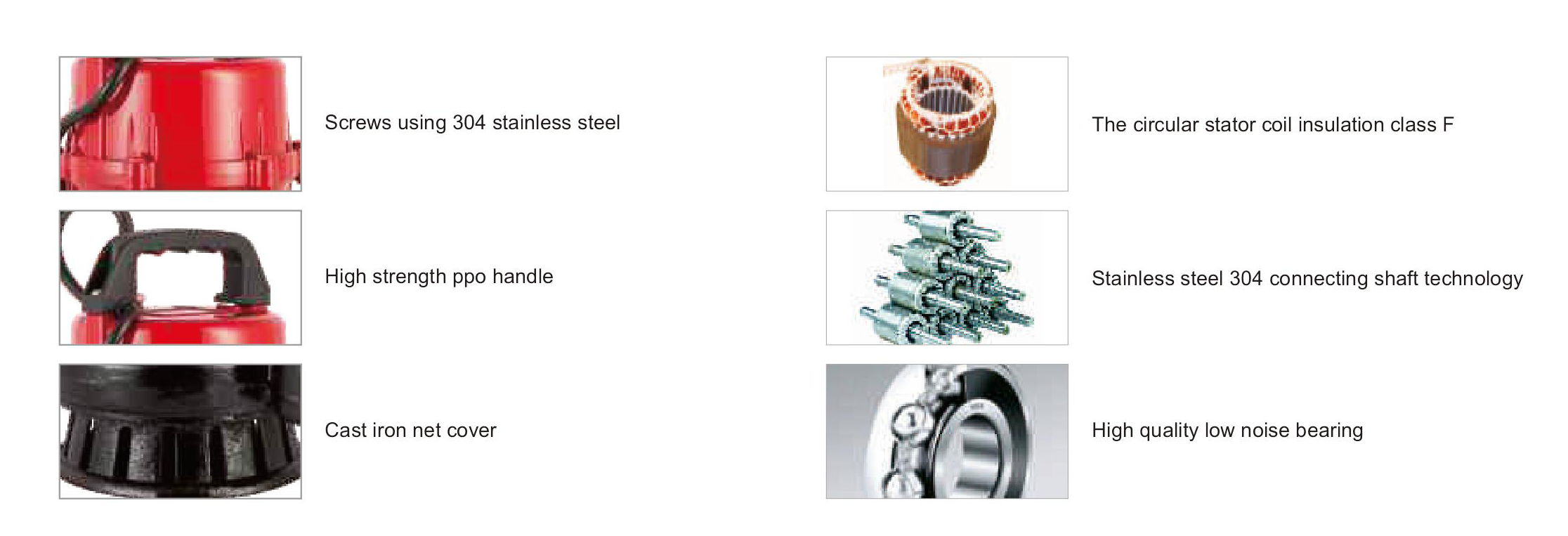

Product Acessories

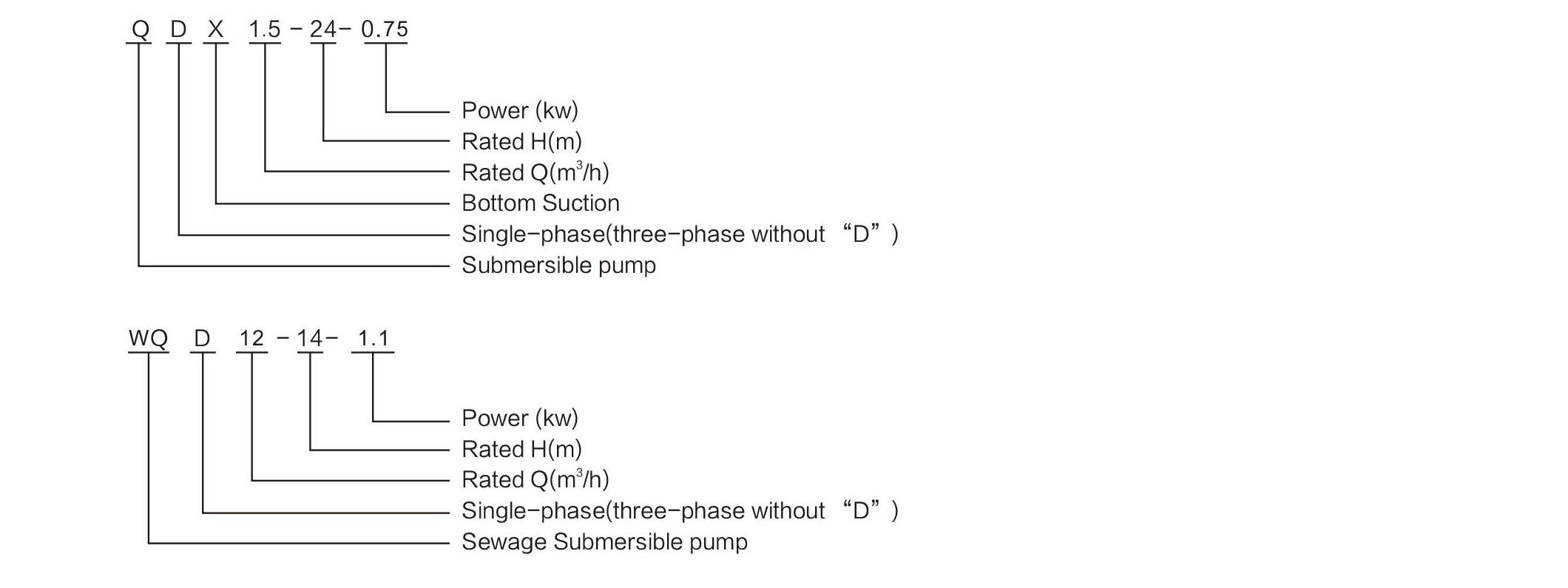

Model Description

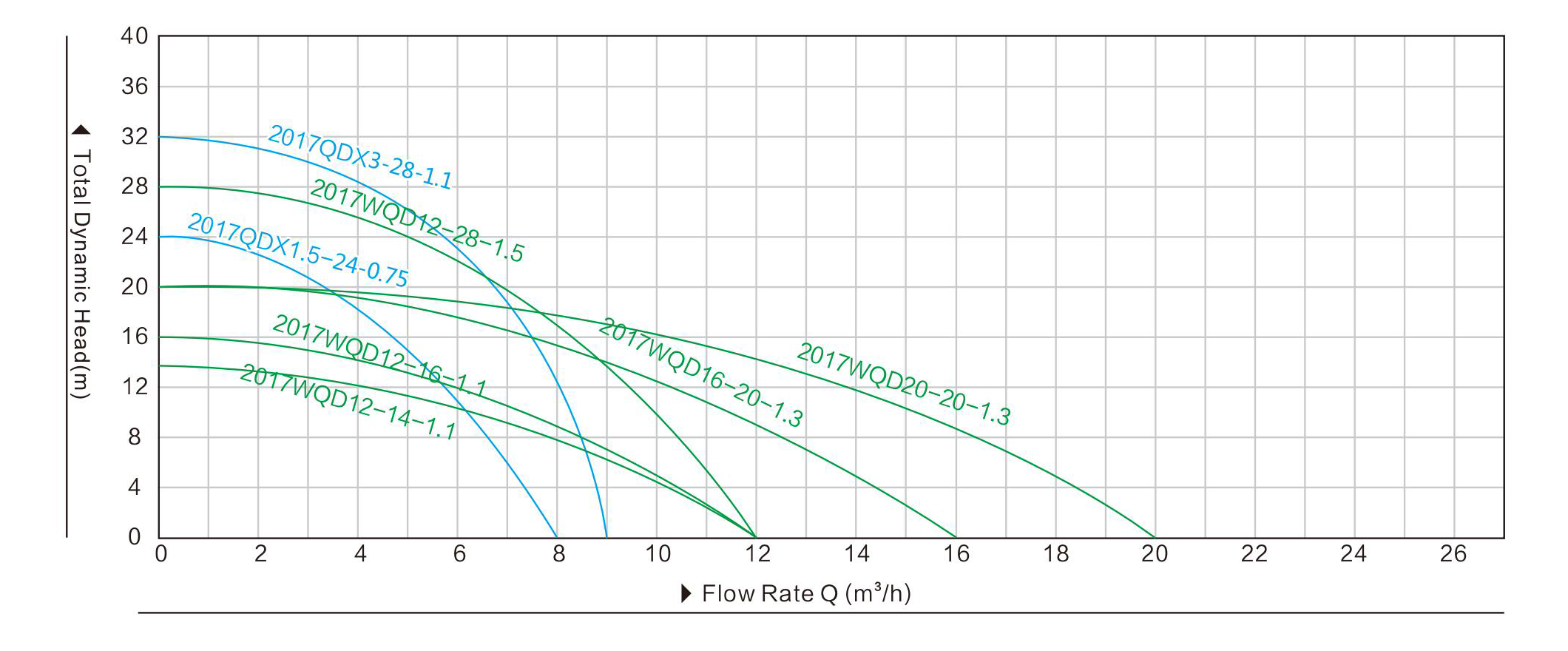

Graph

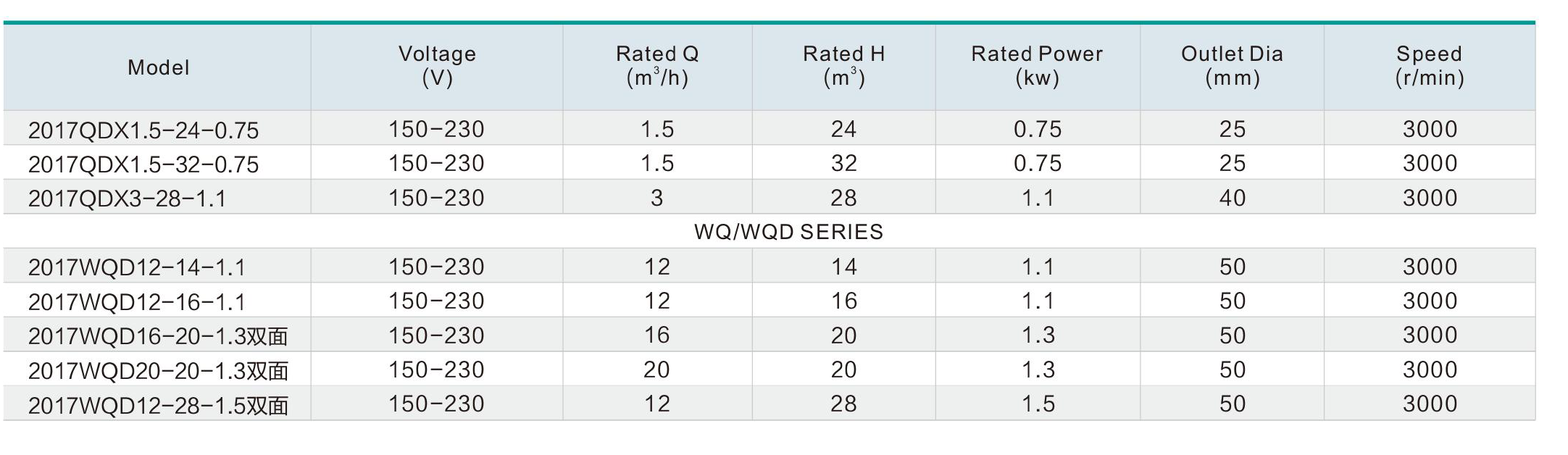

Performance Parameters
